Product Parameters：
- Length: 3.2mm~13.2mm
- Width: 1.3mm-1.5mm
- Thickness: 0.6mm~1mm
- Over Current: 5A~30A
- Tolerance: 1%
Product Features:
- High reliability
- High overload capacity
- Alloy plate chip
- Good welding performance
- Encapsulation process Intermediate insulation treatment
- Wide operating temperature range Non-inductive design

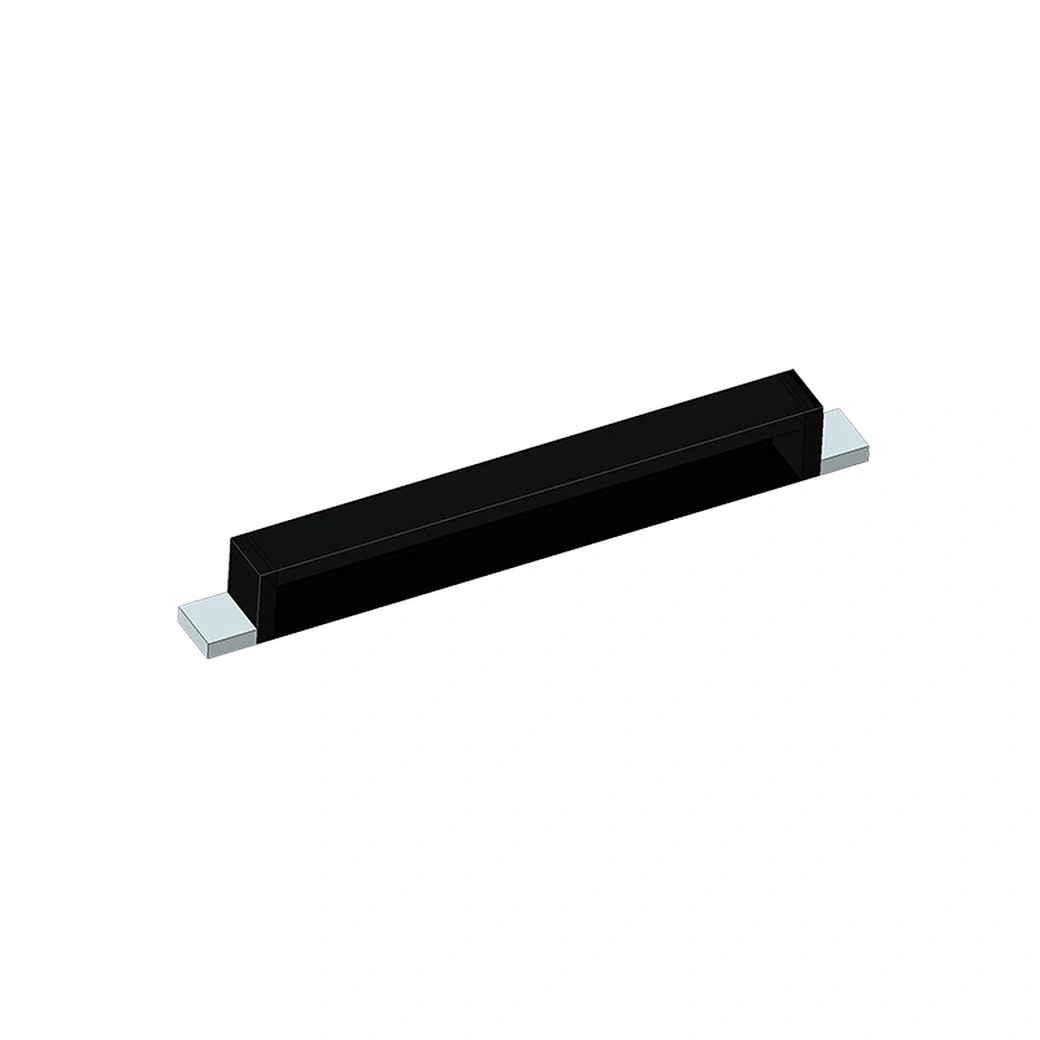

- Flexible Jumper/ High-Reliability Busbar/ Copper Busbar
Scope of application：
- Driving technology
- Power electron
- Current sampling
- Home appliance control
- Automotive electronics
- Communication power supply
- Low inductance circuit
- High current pulse circuit
- Flexible Jumper/ High-Reliability Busbar/ Copper Busbar
Flexible Jumper/ High-Reliability Busbar/ Copper Busbar support customize
Support customize, welcome to contact us for more solutions.
| Length | Width | Thickness | OverCurrent | Tolerance |
| 3.2mm | 1.3mm | 0.6mm | 5A~30A | 1% |
| 5.2mm | 1.5mm | 0.6mm | 5A~30A | 1% |
| 8.2mm | 1.5mm | 1mm | 5A~30A | 1% |
| 10.2mm | 1.5mm | 0.8mm | 5A~30A | 1% |
| 13.2mm | 1.5mm | 0.8mm | 5A~30A | 1% |
