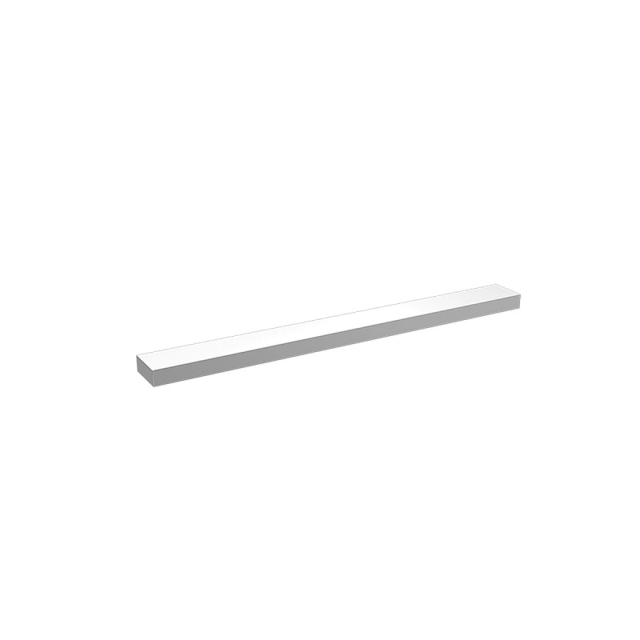

High-Power Jumper/ Automotive Grade Jumper/ Copper Busbar have a very low resistance value because they shorts patterns
Product Parameters：
- Length: 3mm~100mm
- Width: 1mm-10mm
- Thickness: 0.3mm~5mm
- Over Current: 100A~600A
Product Features:
- Tin-plated copper surface, good welding performance
- High reliability, high overload capacity
- Wide operating temperature range
- Non-inductive design
- Complies with ROHS requirements and halogen-free requirements
- Complies with automotive standards AEC-Q200 test
- Material thickness can be customized
- Material length can be customized
- High-Power Jumper/ Automotive Grade Jumper/ Copper Busbar
Application range：
- Drive technology
- Power electronics
- Current sampling
- Home appliance control
- Automotive electronics
- Communication power supply
- Low inductance circuit
- High current pulse circuit
- Feedback Circuit
- High-Power Jumper/ Automotive Grade Jumper/ Copper Busbar
Support customize, welcome to contact us for more solutions.
| Length |
Width |
Thickness |
OverCurrent |
Shape |
| 3mm~100mm |
1mm~10mm |
0.3mm~5mm |
100A~600A |
I |
